1. Introduction

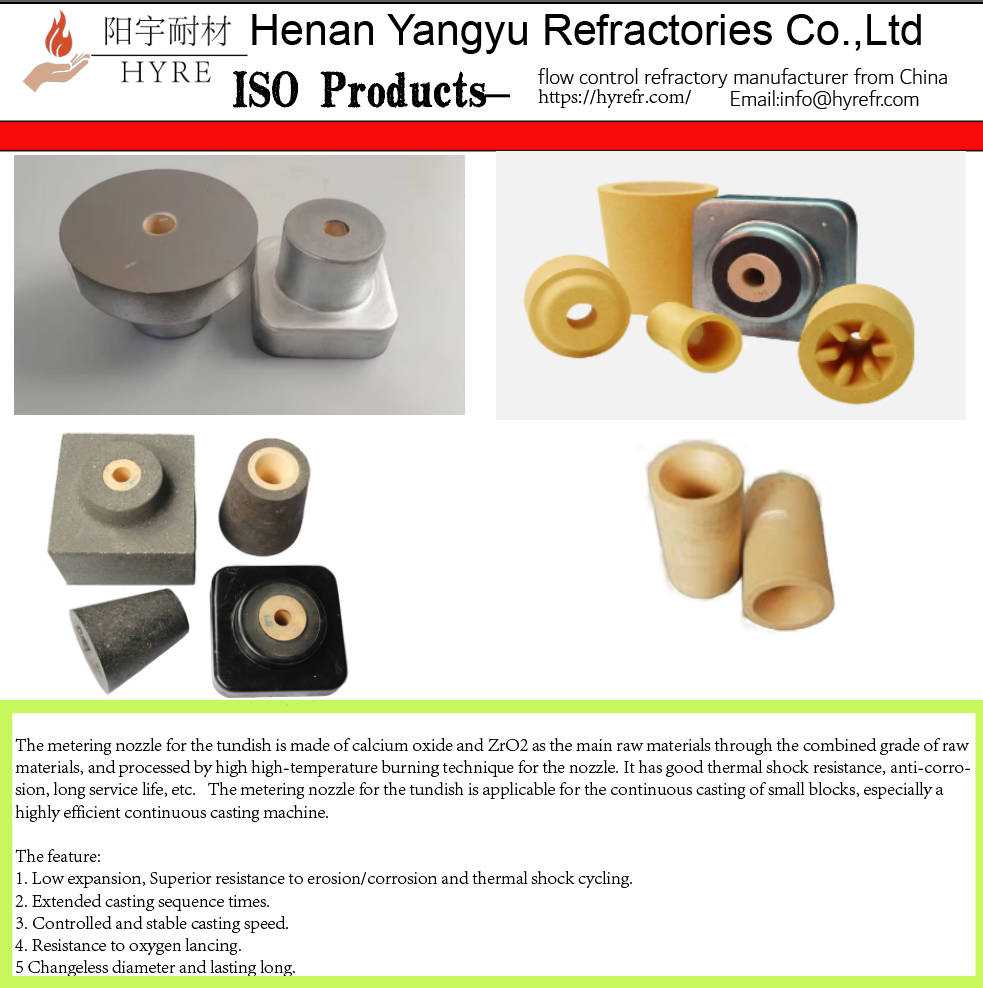

The ​tundish metering nozzle ​(TMN), also referred to as the tundish nozzle or metering nozzle, is a critical refractory component in continuous casting. Installed at the bottom of the tundish, it controls the flow rate of molten steel from the tundish into the ​submerged entry nozzle​ (SEN) and ultimately into the mold. By regulating steel flow, the tundish metering nozzle plays a key role in ensuring casting stability, steel cleanliness, and surface quality of the final product.

Despite continuous improvements in material technology and nozzle design, tundish metering nozzles still face numerous operational challenges. These problems often limit nozzle service life, disrupt casting operations, and negatively affect steel quality. Understanding the existing problems of tundish metering nozzles is essential for metallurgists, refractory engineers, and casting operators who seek to optimize performance and reliability.

This article systematically analyzes the major technical, operational, and material-related problems encountered in tundish metering nozzles, explains their root causes, and discusses their impact on continuous casting performance.

2. Severe Nozzle Clogging

2.1 Nature of the Clogging Problem

Clogging is widely recognized as the most serious and common problem affecting tundish metering nozzles. It occurs when non-metallic inclusions accumulate and adhere to the inner wall of the nozzle bore, gradually restricting molten steel flow.

Typical clogging products include:

Aluminum oxide (Al₂O₃)

Calcium aluminate inclusions

Complex oxide clusters

Reoxidation products

As clogging progresses, operators must increase stopper rod opening or casting speed, which destabilizes the process.

2.2 Causes of Clogging

Key factors contributing to nozzle clogging include:

Aluminum-killed steel grades with high Al content

Reoxidation due to air aspiration

High oxygen activity in tundish steel

Rough or chemically active nozzle bore surfaces

Insufficient argon protection

Once inclusions begin to adhere, they act as nucleation sites for further buildup, accelerating clogging.

2.3 Impact on Casting Operations

Clogging leads to:

Unstable steel flow

Mold level fluctuations

Reduced casting speed

Emergency casting interruptions

Increased inclusion defects in final products

3. Chemical Corrosion of Nozzle Materials

3.1 Slag–Refractory Interaction

Tundish metering nozzles are continuously exposed to tundish slag and molten steel. Aggressive slags with high FeO or MnO content readily react with refractory components, causing:

Dissolution of Al₂O₃ and MgO

Penetration of liquid slag into pores

Structural weakening

3.2 Steel–Refractory Chemical Reactions

Reactions between dissolved elements in steel (such as Al, Ca, or Ti) and the nozzle material can change the chemical stability of the bore surface. These reactions often promote inclusion adhesion and accelerate wear.

3.3 Consequences of Chemical Corrosion

Accelerated bore enlargement

Increased surface roughness

Reduced resistance to clogging

Shortened nozzle service life

4. Erosion and Washout of the Nozzle Bore

4.1 High-Velocity Steel Flow

Molten steel flows through the tundish metering nozzle under significant hydrostatic pressure. High casting speeds and large tundish steel heads increase flow velocity, resulting in mechanical erosion of the bore.

4.2 Inclusion-Assisted Erosion

Hard oxide inclusions carried by the steel act as abrasive particles, intensifying material removal at:

Bore inlet edges

Flow direction changes

Nozzle outlet region

4.3 Effects of Erosion

Erosion causes:

Enlarged bore diameter

Increased steel flow rate

Loss of precise flow control

Higher risk of slag entrainment

5. Thermal Shock and Crack Formation

5.1 Rapid Temperature Changes

Tundish metering nozzles experience severe thermal cycling:

Heating during tundish preheating

Sudden exposure to molten steel

Cooling during casting interruptions

Rapid temperature changes generate thermal stress that can exceed material strength.

5.2 Crack Initiation and Propagation

Cracks often initiate at:

Surface defects

Insert–matrix interfaces

Regions with non-uniform microstructure

Once formed, cracks provide pathways for steel and slag penetration, accelerating failure.

6. Structural and Dimensional Instability

6.1 Manufacturing-Related Variations

Inconsistent manufacturing can result in:

Non-uniform density

Uneven bore geometry

Residual internal stresses

These issues reduce nozzle reliability under service conditions.

6.2 Deformation During Service

Prolonged exposure to high temperature and mechanical stress may cause:

Creep deformation

Loss of dimensional accuracy

Poor sealing with the stopper rod or SEN

7. Air Aspiration and Secondary Oxidation

7.1 Inadequate Sealing

Poor sealing between the tundish metering nozzle and adjacent components allows air to be sucked into the steel stream, especially at low steel levels.

7.2 Consequences of Air Ingress

Air aspiration causes:

Reoxidation of molten steel

Formation of new inclusions

Increased clogging tendency

Deterioration of steel cleanliness

8. Limited Effectiveness of Argon Protection

8.1 Non-Uniform Argon Distribution

In nozzles with argon injection capability, improper design may lead to:

Localized gas flow

Dead zones without protection

Turbulent steel flow

8.2 Operational Constraints

Argon flow rates must be carefully balanced. Excessive argon can:

Disturb mold flow

Entrain slag

Create surface defects

Insufficient argon, however, fails to prevent clogging.

9. Compatibility Issues with Stopper Rod Systems

9.1 Poor Contact and Alignment

Misalignment between the stopper rod head and tundish metering nozzle can cause:

Uneven wear

Localized erosion

Steel leakage

9.2 Wear at the Contact Interface

Repeated opening and closing movements create mechanical wear at the contact surface, increasing surface roughness and clogging risk.

10. Short and Unpredictable Service Life

10.1 Heat-to-Heat Variability

Service life of tundish metering nozzles often varies significantly due to:

Changes in steel grade

Slag composition variations

Operational instability

This unpredictability complicates maintenance planning.

10.2 Economic Impact

Frequent nozzle replacement results in:

Increased refractory costs

Higher downtime

Reduced productivity

11. Safety Risks

Failure of a tundish metering nozzle can lead to:

Molten steel leakage

Uncontrolled steel flow

Severe safety hazards

Thus, reliability is a critical concern beyond cost and quality.

12. Summary and Outlook

Despite being a relatively small component, the tundish metering nozzle faces a wide range of existing problems, including clogging, corrosion, erosion, thermal cracking, air aspiration, and compatibility issues with stopper rod systems. These problems are interconnected and often reinforce each other.

Key Challenges Identified:

Severe clogging in aluminum-killed steels

Chemical and mechanical degradation

Thermal shock sensitivity

Inconsistent service life

Operational and safety risks

Future improvements will depend on:

Advanced refractory materials (e.g., zirconia-based systems)

Improved argon protection design

Better tundish atmosphere control

Enhanced manufacturing quality

Integrated process optimization

Addressing the existing problems of ​tundish metering nozzles​ requires a system-level approach involving materials science, process control, and operational discipline. Only through coordinated optimization can steelmakers achieve stable casting, high steel cleanliness, and extended nozzle service life.
